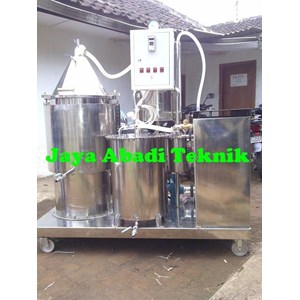

Engine Vacuum Evaporator

Specification of Engine Vacuum Evaporator

Engine Vacuum Evaporator (Deduction On Moisture Content)

Evaporator engine vacuum (vacuum evaporator) is commonly used by the engine to reduce the moisture content of a liquid-shaped material. The working principle of this machine is without a direct warming, the temperature can be regulated in accordance with desire. The use of low temperatures accompanied by vacuum, will keep the nutrition/nutritional products are not missing or damaged

This evaporator using tubing machine double jacket, so the heat tidak is directly related to the product, but rather through intermediaries (medium) water.

The machine can be used for vacuum evaporator product: oil (VCO), milk, honey, and other liquid products to reduced water levels.

Featured Engine Vacuum Evaporator:

• Automatic temperature control
• Full Stainless Steel
• Control Panel
• Digital Temperature Control
• Control Pressure
• Double tube jacket

p >

Vacuum Evaporator Engine Specifications:

Capacity: 25 Litres/process

• Dynamo Electric power: 1 HP + ¼ HP
• Round: 40 Rpm
• Working temperature: 60 ° C d
• Material: Stainless Steel
• Thickness: 2 Mm
• Tank: Double Jacket
• Dimensions: 122 x 60 x 120 Cm

Capacity: 50 litres/process

• Dynamo Electric power: 1 HP + ½ HP
• Round: 40 Rpm
• Working temperature: 60 ° C d
• Material: Stainless Steel
• Thickness: 2 Mm
• Tank: Double Jacket
• Dimensions: 130 x 68 x 128 Cm

Capacity: 100 Litres/process

• Dynamo Electric power: 1 HP + 1 HP
• Round: 40 Rpm
• Working temperature: 60 ° C d

Material: Stainless Steel

Thickness: 2 Mm

Tank: Double Jacket

Dimensions: 138 x 76 x 128 Cm

Capacity: 200 litres/process

• Dynamo Electric power: 1 HP + 1 HP
• Round: 40 Rpm
• Working temperature: 60 ° C d
• Material: Stainless Steel
• Thickness: 2 Mm
• Tank: Double Jacket
• Dimensions: 138 x 76 x 128 Cm

Capacity: 300 LiTER/process

• Dynamo Electric power: 2 HP + 1 HP
• Round: 40 Rpm
• Working temperature: 60 ° C d
• Material: Stainless Steel
• Thickness: 2 Mm
• Tank: Double Jacket
• Dimensions: 138 x 76 x 128 Cm

Need these machines,,,??? Please Contact Our ...!!! (081217779667/081803877667/081357573887)
